CLAM::ProcessingComposite Class Reference

#include <ProcessingComposite.hxx>

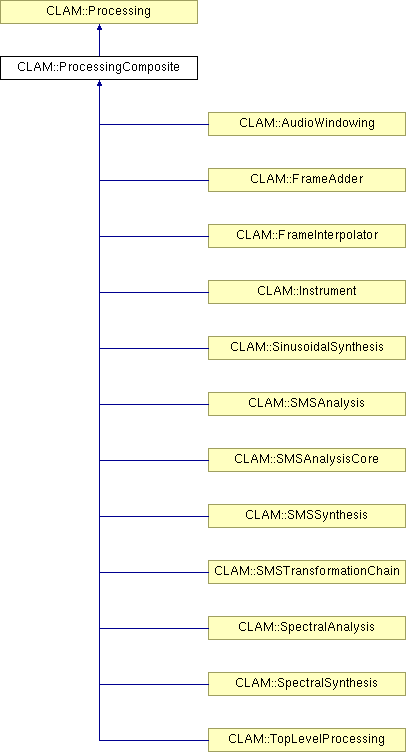

Inheritance diagram for CLAM::ProcessingComposite:

Detailed Description

Abstract class for processing object agregates.

Definition at line 33 of file ProcessingComposite.hxx.


Public Types
typedef std::list< Processing * > ::iterator	iterator
	Processing object composite iterator.
Public Member Functions
virtual	~ProcessingComposite ()
virtual bool	Do (void)=0
	Supervised mode execution method (using ports).
virtual const ProcessingConfig &	GetConfig () const =0
	Configuration getter.
virtual const char *	GetClassName () const
	Override it in every subclass and retur the name of that class.
void	Insert (Processing &o) throw (ErrProcessingObj)
void	Remove (Processing &o)
iterator	composite_begin ()
iterator	composite_end ()
std::size_t	composite_size ()
Protected Member Functions
virtual bool	ConcreteConfigure (const ProcessingConfig &)=0
	Configuration method interface.
virtual bool	ConcreteStart ()
	Concrete start implementation, called when the user calls Start() on the Processing(Composite), should be used to implement any specific start implementation required by classes deriving from this class.
virtual bool	ConcreteStop ()
	See ConcreteStart().

Member Typedef Documentation

typedef std::list<Processing*>::iterator CLAM::ProcessingComposite::iterator

Processing object composite iterator.

Definition at line 74 of file ProcessingComposite.hxx.

Constructor & Destructor Documentation

virtual CLAM::ProcessingComposite::~ProcessingComposite ( ) [inline, virtual]

Definition at line 59 of file ProcessingComposite.hxx.

Member Function Documentation

virtual bool CLAM::ProcessingComposite::ConcreteConfigure ( const ProcessingConfig & ) [protected, pure virtual]

Configuration method interface.

The Processing base class forces all the concrete classes derived from it to implement this method, which must actually perform the specific configuration tasks.

Note that the user can not call this method directly. He will use Configure instead. The argument is expected to be an object of the necesary concrete configuration class.

Parameters:

Reference

to the configuration object.

Returns:: false if the object is not yet fully configured. (For example, if some important configuration attribute such as number of ports was set to zero in the config object)

true if the processing object is left in a consistent state, and can be executed.

Exceptions:

This

method must throw a bad_cast exception if the argument is not an object of the expected configuration class.

Reimplemented from CLAM::Processing.

Implemented in CLAM::TopLevelProcessing, and CLAM::SMSTransformationChain.

bool CLAM::ProcessingComposite::ConcreteStart ( void ) [protected, virtual]

Concrete start implementation, called when the user calls Start() on the Processing(Composite), should be used to implement any specific start implementation required by classes deriving from this class.

When overriding this function in a class derived from ProcessingComposite be sure to call the base class (so child Processings are properly started).

Reimplemented from CLAM::Processing.

Reimplemented in CLAM::SMSAnalysis, CLAM::SMSAnalysisCore, and CLAM::SMSTransformationChain.

Definition at line 27 of file ProcessingComposite.cxx.

References composite_begin(), and composite_end().

Referenced by CLAM::SMSTransformationChain::ConcreteStart(), CLAM::SMSAnalysisCore::ConcreteStart(), and CLAM::SMSAnalysis::ConcreteStart().

bool CLAM::ProcessingComposite::ConcreteStop ( ) [protected, virtual]

See ConcreteStart().

Reimplemented from CLAM::Processing.

Definition at line 53 of file ProcessingComposite.cxx.

References composite_begin(), and composite_end().

virtual bool CLAM::ProcessingComposite::Do ( void ) [pure virtual]

Supervised mode execution method (using ports).

Returns:: A boolean telling whether it has been output

Implements CLAM::Processing.

Implemented in CLAM::AudioWindowing, CLAM::SMSAnalysis, CLAM::SMSAnalysisCore, CLAM::SpectralAnalysis, CLAM::FrameAdder, CLAM::FrameInterpolator, CLAM::TopLevelProcessing, CLAM::Instrument, CLAM::SinusoidalSynthesis, CLAM::SMSSynthesis, CLAM::SpectralSynthesis, and CLAM::SMSTransformationChain.

virtual const ProcessingConfig& CLAM::ProcessingComposite::GetConfig ( ) const [pure virtual]

Configuration getter.

Gets the configuration parameters used to create the object.

Returns:: Const reference to the configuration object. The usual way to perform a configuration change in the processing object is to take a copy of this reference, to change it and to send it with the Configure method. If not overriden, it returns a NullProcessingConfig.

Reimplemented from CLAM::Processing.

Implemented in CLAM::AudioWindowing, CLAM::SMSAnalysis, CLAM::SMSAnalysisCore, CLAM::SpectralAnalysis, CLAM::FrameAdder, CLAM::FrameInterpolator, CLAM::TopLevelProcessing, CLAM::SinusoidalSynthesis, CLAM::SMSSynthesis, CLAM::SpectralSynthesis, and CLAM::SMSTransformationChain.
